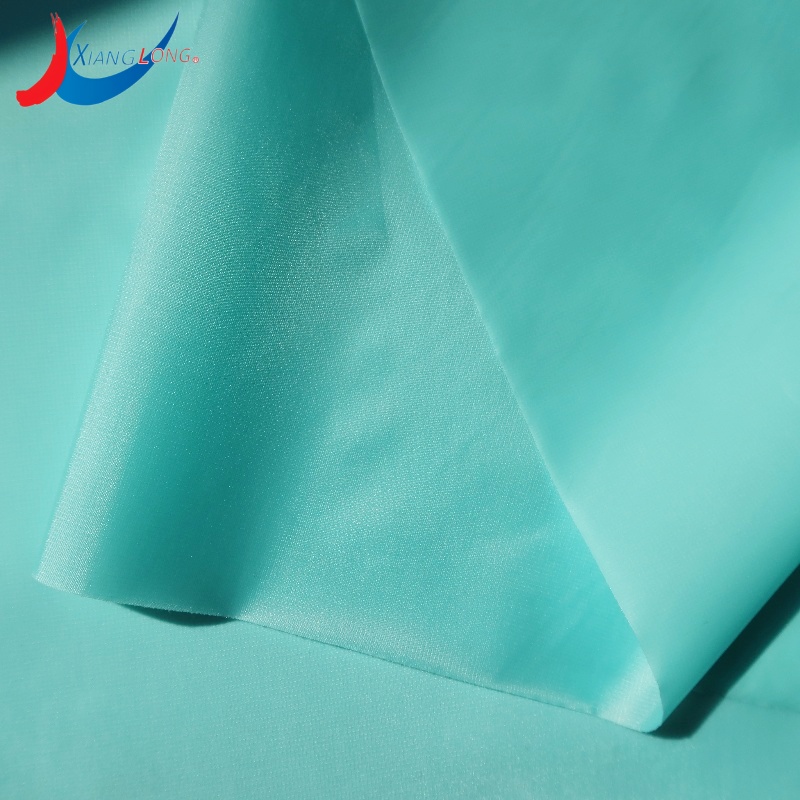

XL TPU Coated 20D Nylon: Designed for Ultralight Performance
XL TPU Coated 20D Nylon is a high-performance composite fabric built from a 20D nylon base fabric and a proprietary XL series TPU coating. The design focuses on applications where low weight, compact storage, and reliable waterproof performance are essential.
The nylon base provides structural strength and tear resistance, while the TPU coating forms a continuous waterproof and airtight barrier. Together, they create a material that is extremely light yet capable of handling demanding outdoor and industrial environments.
Another key advantage is that the fabric is HF-weldable (high-frequency weldable). Instead of traditional stitching, manufacturers can use RF or HF welding to fuse seams. This process creates fully sealed seams with no needle holes, greatly improving waterproof and airtight performance.
Because of these characteristics, the material is widely used in ultralight outdoor equipment, inflatable gear, and portable technical products where both reliability and minimal weight are required.
Fabric Construction: A Balanced Composite Structure
Understanding why this fabric performs so well starts with its construction.
The 20D nylon fabric forms the structural backbone of the material. The number “20D” refers to denier, a measurement describing the thickness of fibers. Lower denier fibers are finer and lighter. Despite their small size, when woven at high density, they can still provide excellent tear resistance and flexibility.
On top of the nylon base sits the ТПУ coating layer. TPU, or thermoplastic polyurethane, is a material known for combining the elasticity of rubber with the durability of plastic. When applied as a coating, it forms a continuous protective film across the fabric surface.
This layered structure creates several performance benefits:
The nylon fabric provides mechanical strength and stability
The TPU coating delivers waterproof and airtight protection
The composite structure maintains a very low overall weight
This balance allows the fabric to remain lightweight while still performing reliably in demanding environments.
Key Performance Characteristics
One of the most important characteristics of XL TPU Coated 20D Nylon is its extremely low weight. The use of 20D nylon significantly reduces material mass, making it ideal for equipment designed for backpacking, mountaineering, bikepacking, and other weight-sensitive activities. In these scenarios, every gram saved can improve portability and user comfort.
Another major advantage is its excellent waterproof and airtight performance. The TPU coating creates a continuous barrier that prevents water penetration while also helping retain air pressure in inflatable products. This makes the material suitable for both waterproof gear and air-holding structures.
Despite being lightweight, the material also provides reliable strength and durability. High-density nylon fibers contribute to tear resistance, while the TPU coating adds abrasion protection. The result is a fabric that performs far beyond what its weight might suggest.
Flexibility is another valuable trait. The TPU layer remains soft and elastic, allowing the fabric to fold and compress easily. This makes the material highly packable, reducing the storage volume of finished products such as sleeping pads, inflatable gear, and outdoor bags.
Why HF Weldable Fabrics Are Important
Traditional waterproof products are often sewn together using stitching. While stitching is simple and effective, it creates small needle holes in the fabric. Even when seam tapes are applied, those holes can eventually become points of water leakage or air loss.
HF welding provides a different approach. In this process, high-frequency electromagnetic energy heats the TPU layer and fuses two fabric pieces together under pressure. The TPU coating melts and bonds, creating a single continuous material structure at the seam.
This technique offers several advantages:
Seam structures become completely waterproof and airtight
Welded seams often provide higher structural consistency
Manufacturing quality becomes more repeatable and reliable
Because of these benefits, HF-weldable TPU fabrics are widely used in products such as inflatable sleeping pads, dry bags, packrafts, and medical air chambers.
